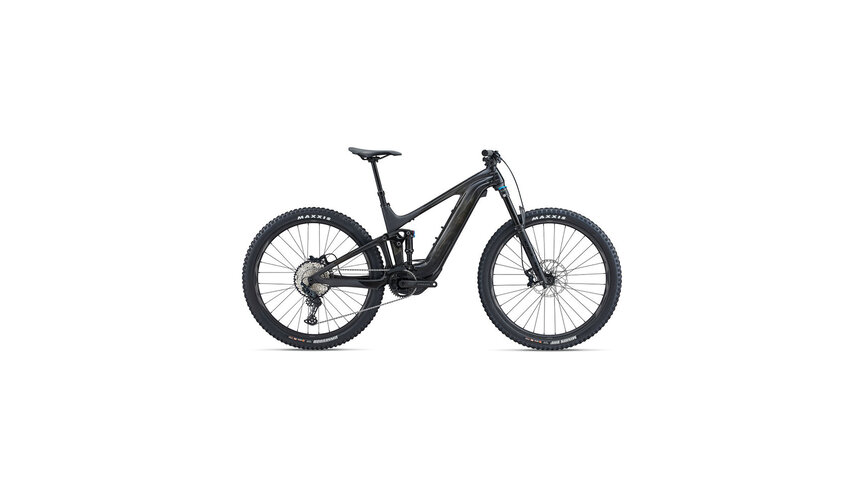

A new SyncDrive Pro motor delivers 85Nm of torque, so you have the freedom to ride trails the way you want to. The composite frameset features 140mm of rear suspension travel (with 150mm up front) and a flip chip that lets you adjust frame geometry. A RideControl Go button on the top tube offers easy on/off and switching between power modes. In addition, the RideControl Ergo 3 controller can be mounted on the left or right side of the handlebar.
Specs
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
|---|---|
| Fork | Fox 36 Float Performance, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Boost 110x15QR, e-optimized |
| Shock | Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned |
| Handlebars | Giant Contact 35 Trail, 35x780mm |
| Tape/Grips | Giant Tactal Pro-E, single lock-on |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch, dropper, 30,9mm (S:125, M:150, L/XL:170) |
| Saddle | Giant Romero, Neutral |
| Pedals | Flatpedal |
| Shifters | Shimano Deore SLX |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore SLX, 12-speed, Shadow+ |
| Brakes | Shimano Deore, BR-M420, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Shimano Deore, BL-MT410 |
| Cassette/Freewheel | Shimano HG-M6100, 10-51T, 12-speed |
| Chain | KMC e.12 Sport, NP/NP, e-bike optimized |
| Crankset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor = 168, XS/S:160, M/L:165, XL:170) |
| Bottom Bracket | N/A |
| Rims | Giant AM 29", Tubeless ready, 30mm inner width |
| Hubs | Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [r] Race [f] |
| Tires | Maxxis Assegai 29x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 120tpi 3C [R] |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool)Inner tube supplied |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube Length (IN) | 15.7 | 16.7 | 17.7 | 18.7 |
| Seat Tube Angle | 77.2° | 78.0° | 76.0° | 76.7° | 76.0° | 76.7° | 76.0° | 76.7° |
| Top Tube Length (IN) | 22.7 | 22.6 | 23.9 | 23.8 | 25.1 | 25 | 26.3 | 26.2 |
| Head Tube Length (IN) | 3.7 | 3.9 | 4.3 | 4.7 |
| Head Tube Angle | 65.7° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° | 65.8° | 66.5° |
| Fork Rake (IN) | 1.7 | 1.7 | 1.7 | 1.7 |
| Trail (IN) | 4.6 | 4.8 | 4.6 | 4.8 | 4.6 | 4.8 | 4.6 | 4.8 |
| Wheelbase (IN) | 48 | 48.1 | 48.8 | 48.7 | 49.9 | 50 | 51.2 | 51.2 |
| Chain Stay Length (IN) | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 | 18.6 |
| Bottom Bracket Drop (IN) | 1.2 | 0.8 | 1.2 | 0.8 | 1.2 | 0.8 | 1.2 | 0.8 |
| Stack (IN) | 23.9 | 23.7 | 24.1 | 23.8 | 24.4 | 24.2 | 24.8 | 24.6 |
| Reach (IN) | 17.3 | 17.6 | 18 | 18.2 | 19 | 19.3 | 20.1 | 20.4 |
| Stand Over Height (IN) | 29.1 | 29.4 | 28.6 | 28.9 | 28.3 | 28.6 | 28.1 | 28.5 |
| Handlebar Width (IN) | 30.7 | 30.7 | 30.7 | 30.7 |
| Stem Length (IN) | 1.6 | 1.6 | 2 | 2 |
| Crank Length (IN) | 6.3 | 6.5 | 6.5 | 6.7 |
| Wheel Size | 29" | 29" | 29" | 29" |
Sizing
| Size | Height (inches) |
|---|---|
| Small | 5'4” - 5’9” |
| Medium | 5’7” - 6'0” |
| Large | 5’10” - 6'3" |
| Extra Large | 6’2” - 6'6" |
