Specs
| Frame |
Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 – 1 1/8” tapered head tube, asymmetrical chainstays w/12x148mm thru-axle dropout, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Deluxe Select+ RL air shock with rebound adjust & lock out, replaceable derailleur hanger |
|---|---|
| Fork |
Rock Shox 35 Gold RL 29”, Solo Air compression, lever actuated lockout, external rebound, 35mm aluminum stanchions, magnesium lowers, 15x110mm axle, 130mm travel, 51mm rake |
| Headset |
FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer |
| Wheels |
Stan’s No Tubes Arch D 29” tubeless rims, 32H, Shimano SLX 15x110mm front & 12x148mm rear hubs, stainless spokes |
| Tires |
WTB Vigilante 29 x 2.35” Front & Trail Boss 29 x 2.25” Rear, TCS Tubeless |
| Derailleurs |
Shimano SLX, 12-speed |
| Shift Levers |
Shimano SLX, 1×12-speed |
| Chain |
KMC X12, 12-speed |
| Cassette |
Shimano M7100, 12-speed, 10-51T |
| Crankset |
Race Face Ride, 32T |
| Bottom Bracket |
Race Face BSA |
| Pedals |
N/A |
| Brakes |
Shimano MT401 hydraulic disc, 180mm front & 160mm rear RT30 rotors |
| Handlebar |
Race Face Ride, 35 x 760mm |
| Stem |
Race Face Ride, 50mm |
| Grips |
Jamis Lock-On |
| Seatpost |
KS Rage Dropper, Southpaw remote |
| Saddle |
WTB Volt |
| Weight |
33 lbs |

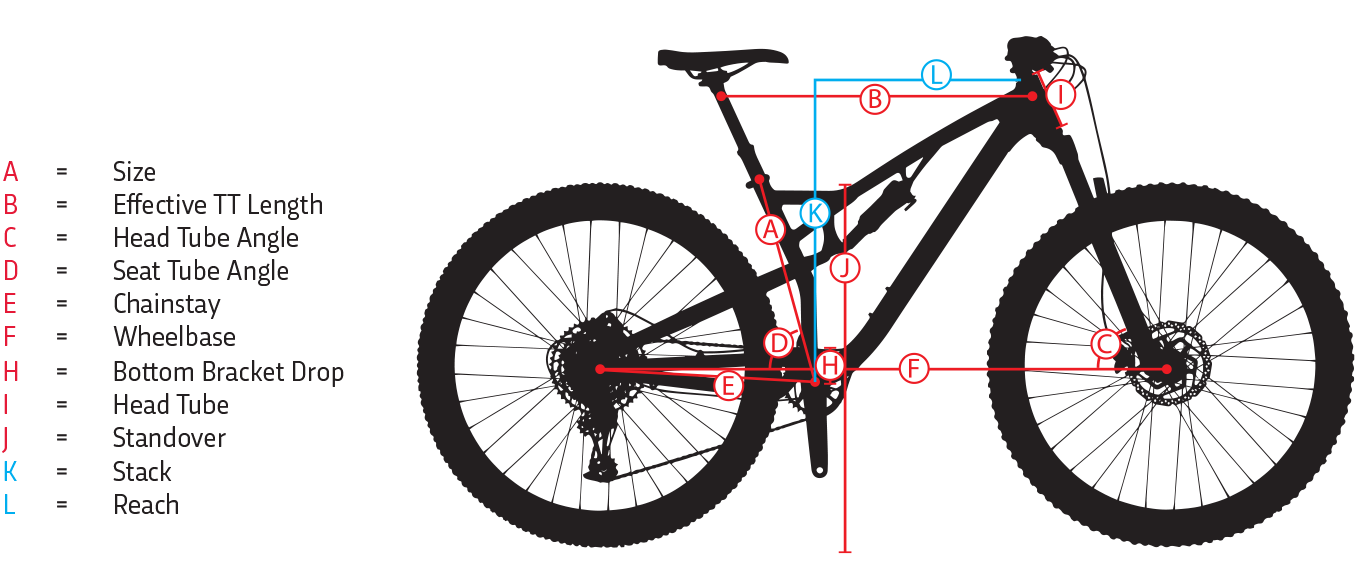

Geometry
| Size | S/15.5" | M/17" | L/19" | XL/21" |
|---|---|---|---|---|
| Top Tube Effective | 23.0 / 585 | 24.0 / 610 | 25.0 / 635 | 26.0 / 660 |
| Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| Chainstay | 17.5 / 445 | 17.5 / 445 | 17.5 / 445 | 17.5 / 445 |
| Wheelbase | 45 / 1153 | 46 / 1179 | 47 / 1205 | 49 / 1232 |
| Bottom Bracket Height | 1.4 / 35 | 1.4 / 35 | 1.4 / 35 | 1.4 / 35 |
| Headtube | 4.1 / 105 | 4.5 / 115 | 4.9 / 125 | 5.3 / 135 |
| Standover | 28.1 / 713 | 29.1 / 739 | 28.5 / 725 | 28.5 / 725 |
| Stack | 24.1 / 611 | 24.4 / 621 | 24.8 / 630 | 25.2 / 639 |
| Reach | 16.3 / 415 | 17.2 / 438 | 18.1 / 460 | 19.0 / 483 |
| Wheel Size | 29" | 29" | 29" | 29" |
