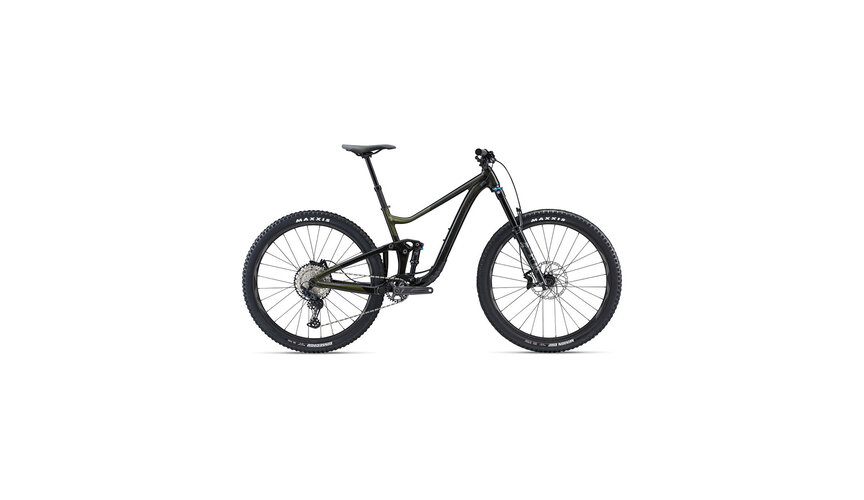

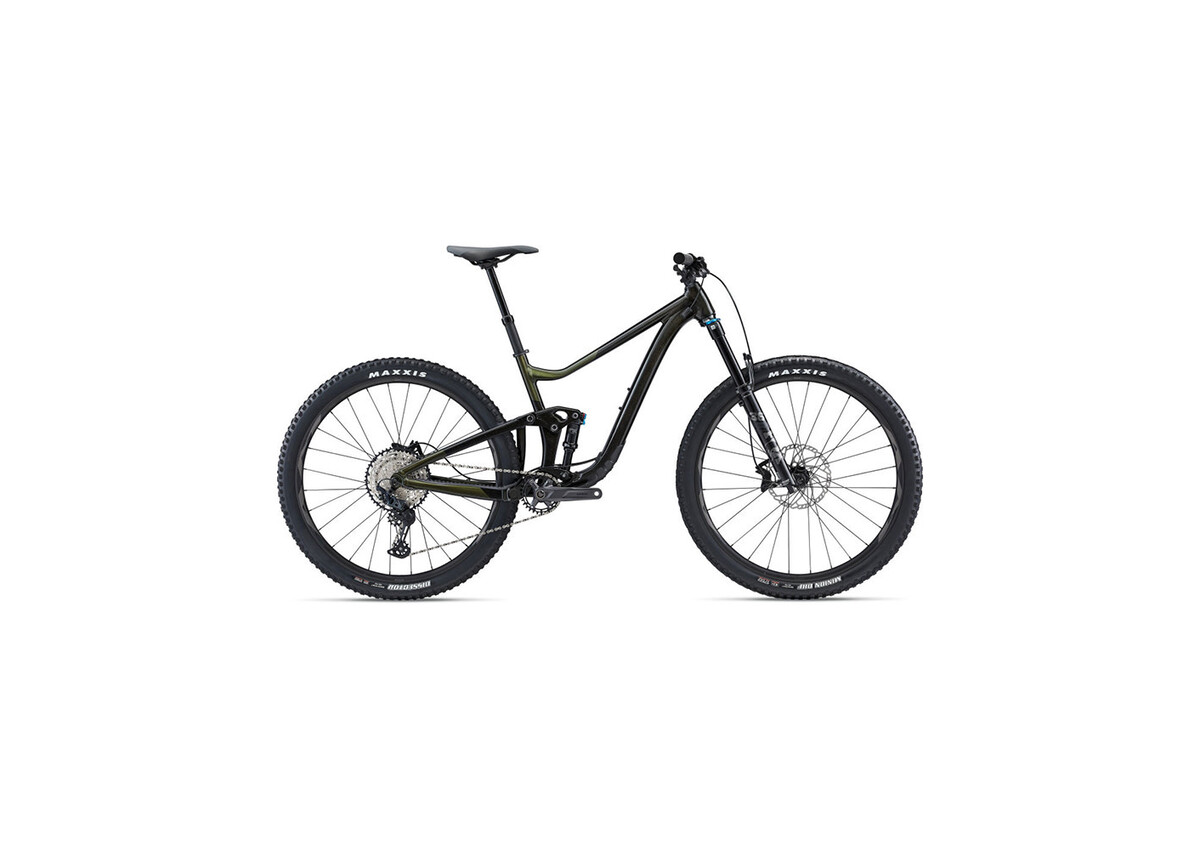

Giant Trance X 29 1
$3,000.00
Availability: In Stock
Chunky rock gardens, roots and technical climbs. This hard-charging trail bike adapts to the terrain, giving you confidence and control on all types of singletrack. MSRP $3600
Engineered to help you ride faster and smoother on the toughest trails, this versatile trail bike has a lightweight, strong and stiff aluminum chassis with 29er-specific geometry. Updated Maestro rear suspension delivers 135mm of active rear travel that pairs perfectly with a 150mm fork. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry. Choose steeper or slacker headtube/seattube angles and either a 30mm or 40mm bottom bracket drop to adjust the handling for your riding style and terrain.
Specs
| Frame | ALUXX SL-Grade Aluminum front and rear triangles, 135mm Maestro suspension, flip chip, 12x148mm thru-axle |
|---|---|
| Fork | Fox 36 Float Performance, FIT4, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant |
| Shock | Fox Float DPS Performance, 185/55, custom tuned for Giant |
| Handlebars | Giant Contact TR35, 780x35mm, 20mm rise |
| Tape/Grips | Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 150mm travel / 30.9 x 440mm L: 170mm travel / 30.9 x 450mm XL: 170mm travel / 30.9 x 450mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano SLX SL-M7100, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano SLX RD-M7100 |
| Brakes | Tektro M745 |
| Brake Levers | Tektro M745 |
| Cassette/Freewheel | Shimano SLX, 10x51 |
| Chain | KMC X-12 |
| Crankset | Shimano M511, 30t S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant AM 29, alloy |
| Hubs | alloy, sealed bearing |
| Spokes | Sapim |
| Tires | [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 TPI, 3C Max Terra, EXO, TR |
| Extras | tubeless prepared, 2.5" max tire size, 34t max chainring size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |

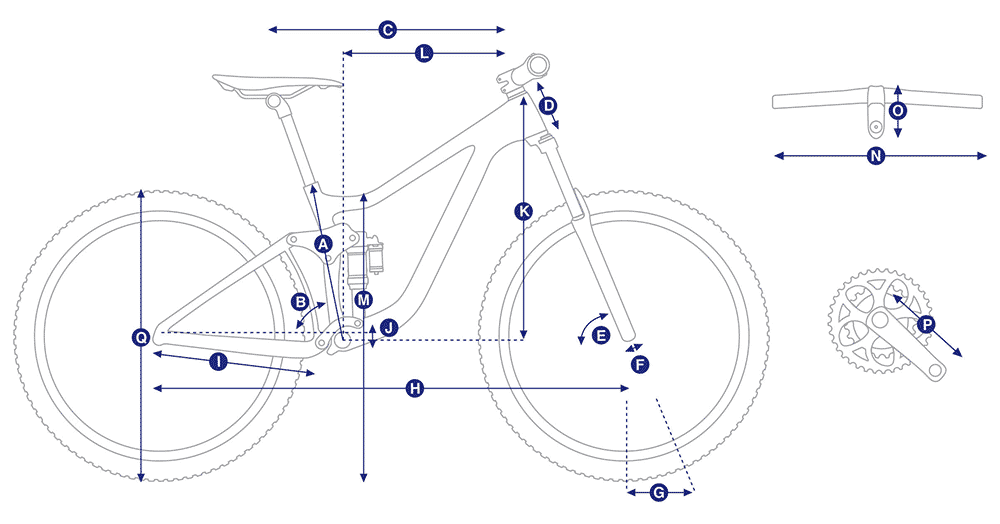

Geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat Tube Length (IN) | 16.9 | 16.9 | 18.3 | 19.5 |
| Seat Tube Angle | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° | 77.2° | 77.9° |
| Top Tube Length (IN) | 22.3 | 22.2 | 23.5 | 23.4 | 24.8 | 24.7 | 25.8 | 25.7 |
| Head Tube Length (IN) | 3.7 | 3.9 | 4.3 | 4.7 |
| Head Tube Angle | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° | 65.5° | 66.2° |
| Fork Rake (IN) | 1.7 | 1.7 | 1.7 | 1.7 |
| Trail (IN) | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 | 4.9 | 4.7 |
| Wheelbase (IN) | 46.2 | 47.4 | 48.8 | 49.9 |
| Chain Stay Length (IN) | 17.2 | 17.2 | 17.2 | 17.2 |
| Bottom Bracket Drop (IN) | 1.6 | 1.6 | 1.6 | 1.6 |
| Stack (IN) | 24.3 | 24.4 | 24.7 | 25.2 |
| Reach (IN) | 16.8 | 18 | 19.1 | 20.1 |
| Stand Over Height (IN) | 28.9 | 28.7 | 29.7 | 30.6 |
| Handlebar Width (IN) | 30.7 | 30.7 | 30.7 | 30.7 |
| Stem Length (IN) | 1.6 | 1.6 | 2 | 2 |
| Crank Length (IN) | 6.5 | 6.7 | 6.7 | 6.7 |
| Wheel Size | 29" | 29" | 29" | 29" |
Sizing
| Size | Height (inches) |
|---|---|
| Small | 5'4” - 5’8” |
| Medium | 5’7” - 5'11” |
| Large | 5’10” - 6'2" |
| Extra Large | 6’2” - 6'5" |
